4Pcs 160mm Diameter 12-24-48-60T TCT Circular Saw Blade Set in Aluminum Box for Wood Cutting



Product description:This TCT Circular saw baldes are designed as general cross cut blades,suitable for cross cutting softwwod,hardwood, plywood, chipboard, multi-board, panels, MDF,plated&counted-plated panels, laminated&Bi-laminate plastic and FRP.

Product Description
Product Name 4Pcs 160mm Diameter 30 Bore TCT Circular Saw Blade Set in Aluminum Box for Wood Cutting
Size

Diameter: 160mm
Hole diameter: 30mm
160mm x 2.2mm x 30mm
Reduction rings: 20mm x 2
1 x 12 teeth - ATB Teeth
1 x 24 teeth - ATB Teeth
1 x 48 teeth - ATB Teeth

1 x 60 teeth - TCG Teeth

Material

Teeth Material: Tungsten Carbide
Body Material: Carbon Steel

Process High-Frequency Welded

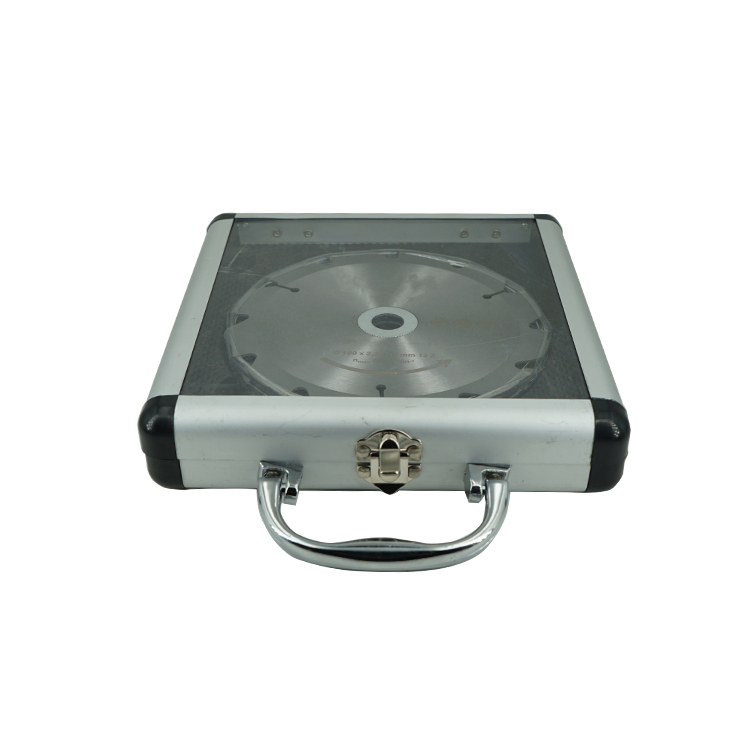

Package 4 pieces in one Aluminum Box
Features

1.This TCT Circular saw baldes are designed as general cross cut blades,suitable for cross cutting softwwod,hardwood, plywood, chipboard, multi-board, panels, MDF,plated&counted-plated panels, laminated&Bi-laminate plastic and FRP. Providing a high degree of finish edge. The blades also can rip cut along the grain.

2.Incorporates an ATB (Alternating Top Bevel) offset tooth design,  The angle of the tooth scores the surface of the wood in advance of the cut, cleanly cutting the wood fibers, before the following teeth remove the chip. This provides for a much smoother cut, with much less chance of splintering the surface of the wood.

3.Tungsten carbide teeth provide excellent wear and heat resistance. positive cutting angle which provides fast and efficient removal of chips and swarf.

3.Fully hardened steel blade body – delivers accuracy and resists bending and deflection for true cuts.

4.Heat expansion slots allow the blade rim to expand and contract without warping for straight and accurate cuts.

6.Equipment use with Circular Saw, Miter Saw, Table Saw, Radial Arm Saw, etc.

Product Size
size for wood cross cut.jpg

* Other specifications and sizes are available upon request
